Four platform stations of the Moscow Metro

I’ve previously written about the standard interchange station design found on Soviet designed metro systems, and the non-standard platform configurations on the Moscow Metro – this time we look at the four track stations that offer cross-platform interchange.

Train arrives into Третьяковская (Tretyakovskaya) station

Кита́й-го́род (Kitay-gorod)

Kitay-gorod is located on Line 6 Kaluzhsko-Rizhskaya and Line 7 Tagansko-Krasnopresnenskaya. It consists of two separate parallel station halls, connected by a central transfer bridge, and a combined escalator vestibule at each end.

Looking down on a arriving train

Cross-platform interchange is possible between northbound trains on the eastern platform, and between southbound trains via the western platform. For passengers wishing to travel in the opposite direction, it is required to use the transfer corridor linking the two platforms.

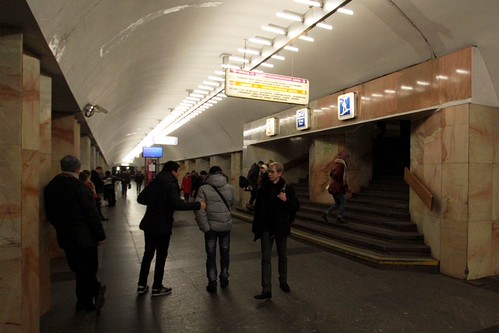

Interchange walkways link the different Metro lines

Третьяко́вская (Tretyakovskaya)

Tretyakovskaya is located on Line 6 Kaluzhsko-Rizhskaya and Line 8 Kalininsko-Solntsevskaya. Tretyakovskaya was originally a two platform station before the connection with Kalininskaya Line was opened in 1986.

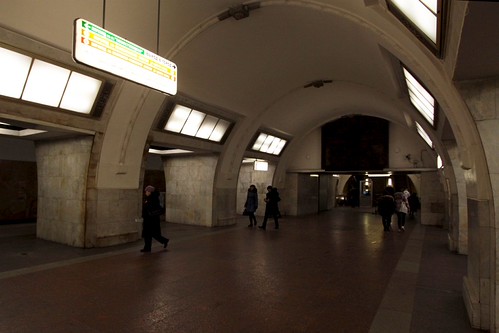

Island platform at Третьяковская (Tretyakovskaya) station

At that time a second hall was opened, forming a cross-platform interchange.

The two halls are joined by a passage located midway along their length and also by the shared vestibule.

Interchange passageways between lines 6, 8 and 2 at Третьяковская (Tretyakovskaya)

Каширская (Kashirskaya)

Kashirskaya is the interchange between the Kakhovskaya and the Orekhovskaya branches of the Zamoskvoretskaya line.

Looking down on waiting passengers and an arriving train

It consists of two parallel station halls separated by a wall, each with an independent exit to ground level, and three narrow transfer footbridges between the island platforms.

Passengers change trains at Каширская (Kashirskaya) station

Парк Победы (Park Pobedy)

Park Pobedy is the interchange between Line 3 Arbatsko–Pokrovskaya and Line 8A Kalininsko–Solntsevskaya, as well as the deepest Moscow Metro station.

Type 81-740.1/741.1 "Rusich" train arrives into Парк Победы

It consists of two parallel station halls, each with their own escalators to the surface, but linked by a a pair of two-aisle transfer footbridges.

Interchange walkways between the two station halls

It opened in 2003 as a terminus of the Arbatsko–Pokrovskaya line, with one set of tracks laying idle until the Kalininsko–Solntsevskaya line opened in 2014.

Unused platform blocked off from the public

Петровско-Разумовская (Petrovsko-Razumovskaya)

Petrovsko-Razumovskaya is the interchange between Line 9 Serpukhovsko–Timiryazevskaya and Line 10 Lyublinsko–Dmitrovskaya.

And again it’s two parallel station halls, with their own escalators to the surface, but linked by pair of two-aisle transfer footbridges.

Station diagrams

The ‘Metro2’ website has an interactive track and station diagram for the complete Moscow Metro network. Here are shortcuts to the stations mentioned above.
